HIMatrix systems

Fast, intelligent, flexible
  • Compact and modular safety-related controllers and remote I/O modules.
  • Proven HIMA safety technology.
  • Certified up to SIL 3 (IEC 61508, IEC 61511 and ISA 84.01)
  • Certified for BMS and F&G applications (NFPA 85, NFPA 72)
  • Response time = 20 ms, cycle time for 1 K program approx. 0.02 ms, the fastest safety PLC in the world.
  • Communication via safe ethernet, Profibus DP Master & Slave, OPC, Modbus RTU und TCP Master & Slave, Send & Receive CP, INTERBUS Master, EtherNet/IP, CUT, SNTP
Downloadable PDF links:
HIMatrix System Facts

Compact PES's

Features of the F20:
  • The smallest safety controller in the world.
  • 8 individual channels, configurable as input or output.
  • Including line monitoring.
  • 4 digital pulsed outputs.
  • 2 Ethernet switch ports.

3-Chart1

3-Chart2

3-HIMatrixF20 (1)-1.       3-HIMatrixF35-1.         3-HIMatrixF3-1

HIMatrix f20 Manual

HIMax extends HIMA platform line-up

  • Extends the HIMA platform system spectrum.
  • Designed for large, time critical and complex applications .
  • Long-term flexibility for online expansion of small/medium sized applications.
    3-CHARTMAIN-1

5-HIMaxHIMax - A new era in safety and plant profitability

  • Eliminate all the shortcomings of current safety platforms available today
  • Provide maximum safety, maximum availability & eliminate false trips
  • NONSTOP operation for the life of the plant
  • Unmatched speed, power & performance
  • Future-proof, every upgrade, every modification, every expansion on-line
  • Flexible architectures - centralized, distributed, remote I/O or any mix
  • Tight OPEN integration to any DC - guaranteed
  • Any application, any size, any speed -using a single platform

HIMax Product Catalog

HIMax - Communications 6-HIMaxPlatforms

  • HIMax is built for Fieldbus
  • Safety and non-safety busses supported
  • Each CPU set supports up to 20 COM modules
  • COM module supports 2 field bus connections and 4 Ethernet ports (RJ-45).
  • Each COM module can run up to 4 protocols simultaneously
    Protocols can be a mixture between safe & non-safe, serial or Ethernet

ComFacts Safeethernet

6-opc

6-Fieldbus

6-ProfiBus

6-HIMAsafeethernet

6-Hart

6-Modbux

Fire & Gas Systems

7-Map

ESD - Relay Logic Replacement 8-ESD1

  • Small enough to fit in same panel
  • Fully programmable/flexible
  • Full visibility of logic & diagnostics
  • SIL 3 certified
  • Logic totally secure
  • Expandable from 8 points
  • Easy integration with DCS

8-junctionbox



Burner Management Systems (BMS)

  • Local operator touch screen - eliminate lamps & buttons, add detailed diagnostics
  • Full visibility to DCS via OPC or Modbus

9-screen.                 9-combine-3



High Integrity Pressure Protection System (HIPPS)

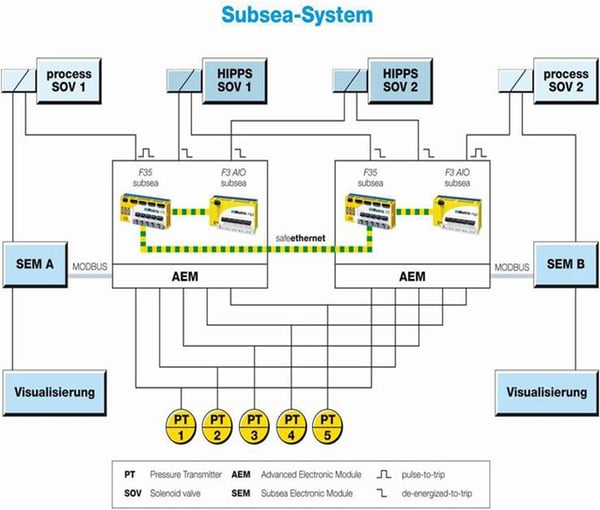

10-Subsea-System



10-BetterTechnology

Turbo Machinery Control & Safety

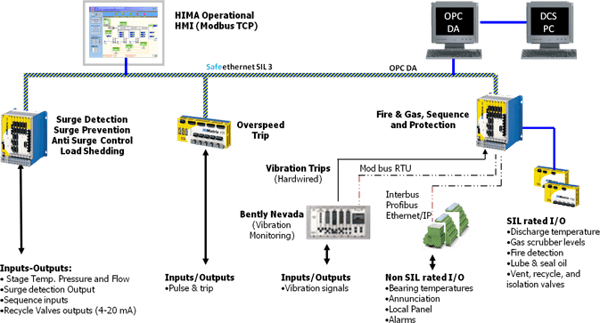

11-control-safety




Pipeline Automation & Leak Detection

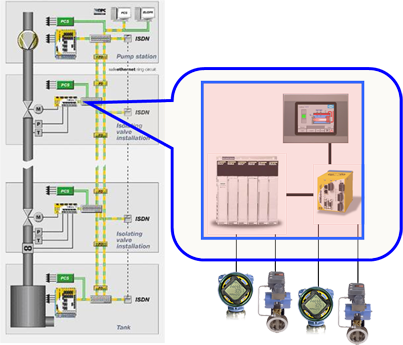

         12-pipeline
