Luxmux’s Smartpole and SmartER system are your ideal solution for gas emission monitoring needs within a wide variety of markets and applications.
.png?width=768&height=432&name=Arm-IOT-new-Solar-panel-Field-View%20(1).png)

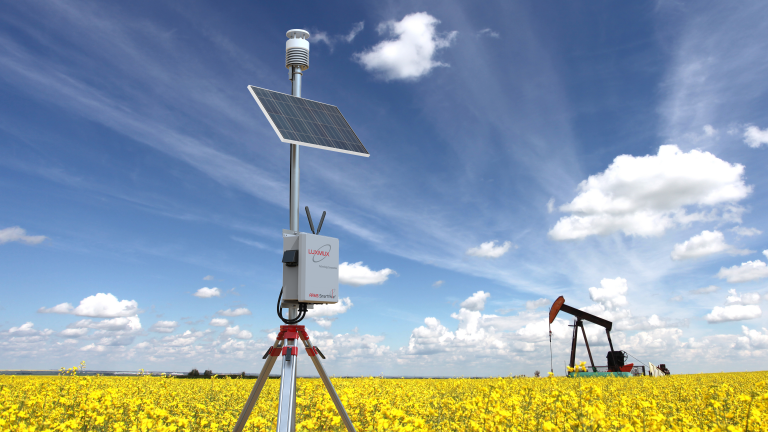

Luxmux ARMS Smartpole™ is amultiple gas monitoring system specifically engineered to be a continuous emissions monitoring solution.
The ARMS SmartER is a data consolidation system that allows 24/7 access to emissions information.
For end-users in need of accurate information on gases emitted at their site, the Luxmux system is a simple solution that provides all relevant data, including wind speed/direction and GPS location, in real-time.
Features:
-
Smartpole sensors placed around an energy site are capable of detecting up to four elements of CH4, CO2, CO, O2, NH3, H2S, NO2, HF, SO2, CL2, O3, VOC, and Dust
-
Detected information includes concentration of element, wind speeds, wind direction, relative humidity, air temperature, air pressure, and GPS location with elevation.
-
All information is compiled into a report that can be remotely accessed at any time through a MODBUS RS232 over USB/RJ45 connection or the Cloud
-
System can be powered with an external 120/240 VAC supply, or standalone using Luxmux provided solar/battery solution.
-
Accuracy (over all rated conditions): <1%
-
Air temperature measurement range: -50°C - 80°C
-
Air temperature resolution: 0.1°C
-
Air temperature sensor accuracy: 0.8°C
-
Relative humidity measurement range: 0 – 100% RH
