Features
-
8 10/100 TX plus two 10/100/1000TX uplink ports
-
Vehicle IP Surveillance with 8 IEEE802.3af PSE
-
12/24V Vehicle Power Input, 48V Output
-
2 Gigabit Ports for Video Server/IPC connection
-
Real Time Port Link-Fault Alarm Output
-
-40~70°C operating temperature

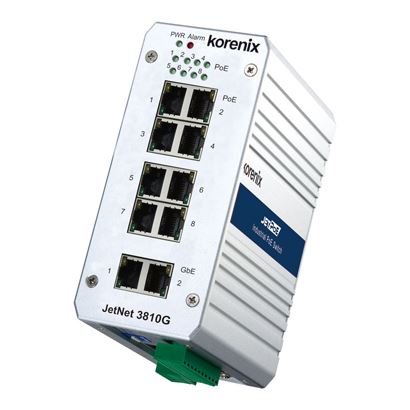

3810G V2 integrates Korenix patented vehicle technology – the 8~32V DC input to 48V power booster to make the deployment of standard IP cameras feasible on buses, railcars, ships, etc. Moreover, the compact size with aluminum alloy metal enclosure allows JetNet 3810G V2 to operate reliably within -40~70°C wide temperature range.
8~32V Power Booster to 48V
3810G V2, designed with Korenix patented DC 8~32V to 48V boost technology, is the best solution for the vehicle applications, where DC 48V power supply is not available. With the built-in power booster, the JetNet 3810G can be powered by DC 8~32V to deliver 15.4W per port and 80W budget per unit at DC 48V and 70°C to enable devices such as IP cameras, Wireless APs, IP phones. Therefore, the Switch can be easily applied in vehicles or carriages.
