X3 extreme

Rugged reliability. Perfect for harsh environments

X3 Extreme HMI series

The X3 extreme HMIs offer a robust and secure platform for iX-based applications, featuring custom-tailored functionality with C# scripting and extended capabilities through NuGet packages. Adhering to IEC 62443-4-2 standards and certified for hazardous areas, they ensure secure operation in rugged environments. With high-quality hardware, powerful CPUs, and large memory, the X3 extreme HMIs guarantee maximum uptime. Effortlessly upgrade from X2 panels and choose from various screen sizes. Additionally, X3 extreme web panels are available to enhance your experience. Enjoy simplicity with the intuitive OS3 operating system and marine dimming capabilities for optimal visibility.

X3_panel-USPs_1 (1)

HMI your way

X3 pro offers an open HMI platform for iX-based applications, custom-tailored functionality using C# scripting and extended capabilities with NuGet packages, modern web browser, etc. Additionally, web panels are available to enhance your experience.

X3_panel-USPs_2

Strengthen your security

The X3 pro HMIs adhere to IEC 62443-4-2 standards for secure operation with encrypted communication, controlled com ports, etc. The operating system OS3 features secure data transfer and user management. DNV SP1 is natively included in iX, ensuring robust security measures. Marine certifications and certifications for hazardous areas of the HMIs guarantee reliable operation in rugged environments.

X3_panel-USPs_3

Ensure maximum uptime

High quality hardware, reliable software, meticulous component selection, and thorough testing create robust industrial performance, ensuring production uptime for end users. HMIs are marine-certified, featuring powerful CPUs and large memory.

X3_panel-USPs_4

Upgrade with ease

Customers can effortlessly replace X2 panels with X3 thanks to the same panel size, cut-out, connector setup, and guided software transition.

X3_panel-USPs_5

Choose your perfect fit

Select from 7, 12, and 15-inch screens, all within the same HMI series, to perfectly fit any application needs.

X3_panel-USPs_6

Experience simplicity

The X3 pro HMIs are designed for simplicity and ease of configuration. With the OS3 operating system, users benefit from an intuitive interface that enhances usability, simplifies device setup, and provides hardware diagnostics.

X3-icons--product-extreme_16_9

Long-term reliability

The X3 HMIs are robustly constructed to withstand extreme -30°C to 70°C temperatures, high vibrations, and other harsh environmental conditions, ensuring long-term reliability.

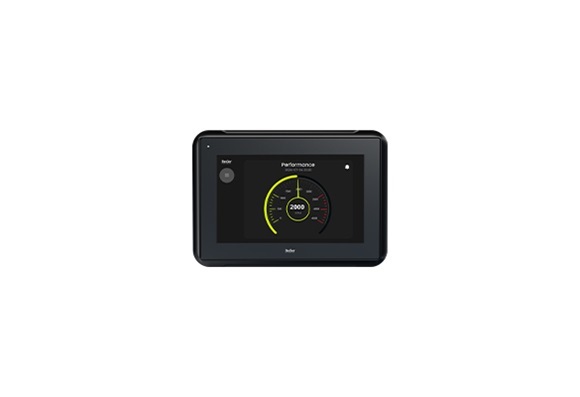

X3 extreme 7 P

X3 extreme 7 P

7'' rugged HMI with iX app

  • High performant rugged HMI
  • Design optimized for use in rugged environments
  • Cybersecurity design based on IEC 62443-4-2
  • 7" 800 × 480 pixel (16:9) TFT-LCD with resistive touchscreen
  • -30°C to 70°C operating temperature
  • -40°C to 80°C storage temperature
  • CE, FCC, KCC, marine certifications; hazardous certifications

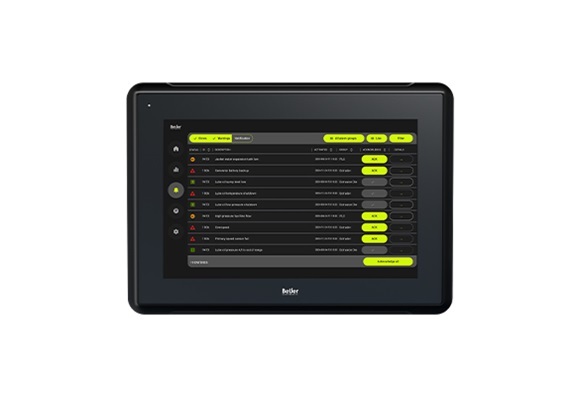

X3 extreme 12P

X3 extreme 12 P

12'' rugged HMI with iX app

  • High performant rugged HMI
  • Design optimized for use in rugged environments
  • Cybersecurity design based on IEC 62443-4-2
  • 12,1" 1280 × 800 pixel (16:10) TFT-LCD with resistive touchscreen
  • -30°C to 70°C operating temperature
  • -40°C to 80°C storage temperature
  • CE, FCC, KCC, marine certifications; hazardous certifications

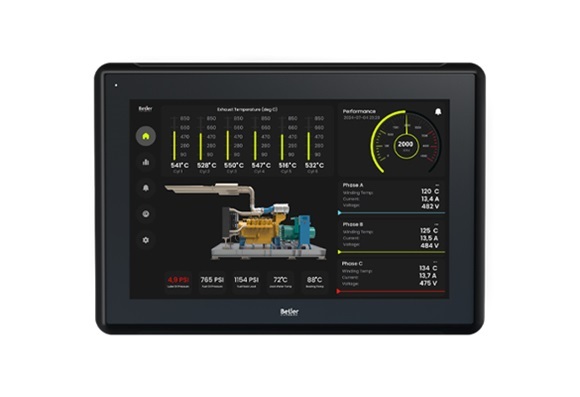

X3 extreme 15P

X3 extreme 15 P

15'' rugged HMI with iX app

  • High performant rugged HMI
  • Design optimized for use in rugged environments
  • Cybersecurity design based on IEC 62443-4-2
  • 15,4" 1280 × 800 pixel (16:10) TFT-LCD with resistive touchscreen
  • -30°C to 70°C operating temperature
  • -40°C to 80°C storage temperature
  • CE, FCC, KCC, marine certifications; hazardous certifications

High Brightness Displays

X3 extreme 7 P

X3 extreme 7 P HB

7'' rugged high brightness HMI with iX app

  • High performant rugged HMI
  • Design optimized for use in rugged environments
  • Cybersecurity design based on IEC 62443-4-2
  • 7" 800 × 480 pixel (16:9) TFT-LCD with resistive touchscreen
  • -30°C to 70°C operating temperature
  • -40°C to 80°C storage temperature
  • CE, FCC, KCC, marine certifications; hazardous certifications
X3 extreme 12P

X3 extreme 12 P HB

12'' rugged high brightness HMI with iX app

  • High performant rugged HMI
  • Design optimized for use in rugged environments
  • Cybersecurity design based on IEC 62443-4-2
  • 12,1" 1280 × 800 pixel (16:10) TFT-LCD with resistive touchscreen
  • -30°C to 70°C operating temperature
  • -40°C to 80°C storage temperature
  • CE, FCC, KCC, marine certifications; hazardous certifications
X3 extreme 15P

X3 extreme 15 P HB

15'' rugged high brightness HMI with iX app

  • High performant rugged HMI
  • Design optimized for use in rugged environments
  • Cybersecurity design based on IEC 62443-4-2
  • 15,4" 1280 × 800 pixel (16:10) TFT-LCD with resistive touchscreen
  • -30°C to 70°C operating temperature
  • -40°C to 80°C storage temperature
  • CE, FCC, KCC, marine certifications; hazardous certifications

Ultra HMIs With Capacitive Touch Screen

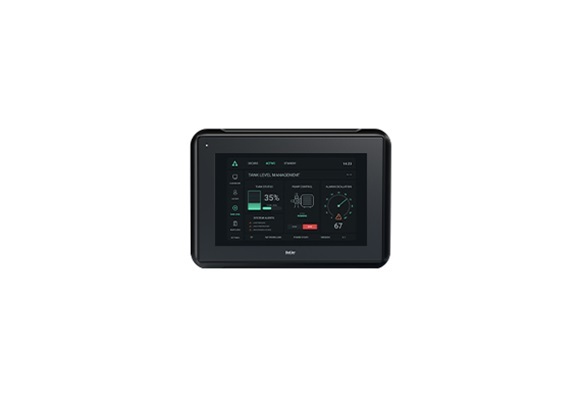

X3 extreme 7 CT

X3 extreme ultra 7 P HB CT

7'' rugged HMI with capacitive touch screen and iX app

  • Verified through testing for –40°C to +80°C and 7.7 G vibration, exceeding the specified temperature and vibration range of the product.
  • Aligned with MIL-STD-810H requirements
  • Cybersecurity design based on IEC 62443-4-2
  • 7" 800 × 480 pixel (16:9) TFT-LCD with capacitive touch screen
  • High performant rugged HMI
  • Industrial, marine and hazardous certifications

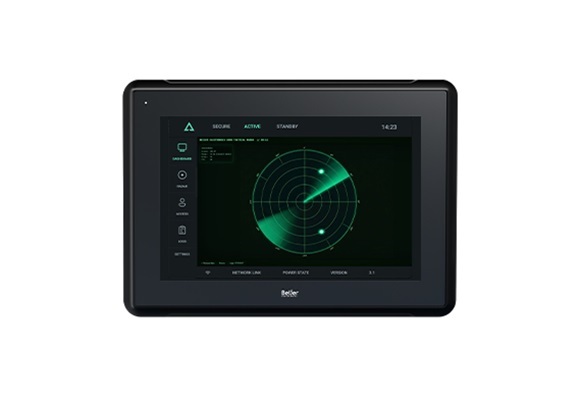

X3 extreme 12 CT

X3 extreme ultra 12 P HB CT

12'' rugged HMI with capacitive touch screen and iX app

  • Verified through testing for –40°C to +80°C and 7.7 G vibration, exceeding the specified temperature and vibration range of the product.
  • Aligned with MIL-STD-810H requirements
  • Cybersecurity design based on IEC 62443-4-2
  • 12,1" 1280 × 800 pixel (16:10) TFT-LCD with capacitive touch screen
  • High performant rugged HMI
  • Industrial, marine and hazardous certifications

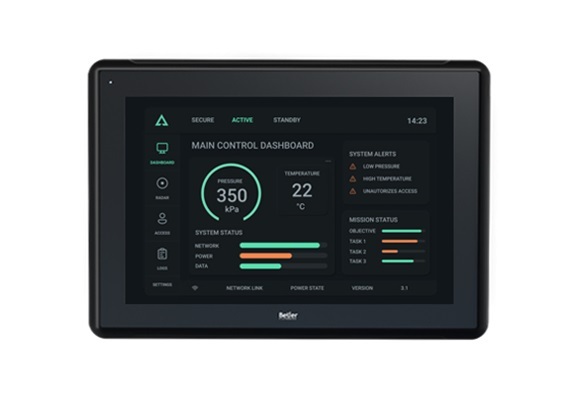

X3 extreme 15 CT

X3 extreme ultra 15 P HB CT

15'' rugged HMI with capacitive touch screen and iX app

  • Verified through testing for –40°C to +80°C and 7.7 G vibration, exceeding the specified temperature and vibration range of the product.
  • Aligned with MIL-STD-810H requirements
  • Cybersecurity design based on IEC 62443-4-2
  • 15,4" 1280 × 800 pixel (16:10) TFT-LCD with capacitive touch screen
  • High performant rugged HMI
  • Industrial, marine and hazardous certifications
