Nexto Xpress features DIN-rail mount, compact design, high-speed 32-bit ARM-based processor, high I/O density with multi-purpose analog inputs, LEDs for diagnostics and IO status, and real-time clock.

  • Industry 4.0 ready by connectivity via OPC UA.

  • Cost-efficient in a compact format offering the perfect mix of digital and analog I/Os.

  • Perfect within machinery, building automation, water and waste water, infrastructure, etc.

  • Interface with other equipment via integrated CAN bus

  • Embedded CODESYS WebVisu server enables HTML5 visualization on external devices

  • Wide range of connectivity options using standard industrial protocols

  • Built-in high speed I/O for precise machine control.

  • Same powerful CODESYS programming environment for all Nexto controllers
Nexto-express-explain-1

Nexto Xpress is available in four different hardware versions all supported by CODESYS, the leading hardware-independent IEC 61131-3 development tool on the market.

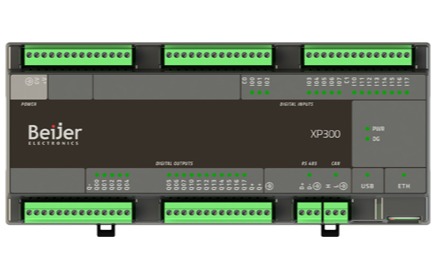

6005-643

BCS-XP300

  • 16 DI (4 fast), 16 DO (4 fast)

  • High speed counter input/PTO and PWM outputs

  • Ethernet TCP/IP, Serial, USB and CAN interface

  • CANopen Master interface

  • 3G/4G/WiFi (external accessory via USB port)

  • SQL integration

  • DNV certified

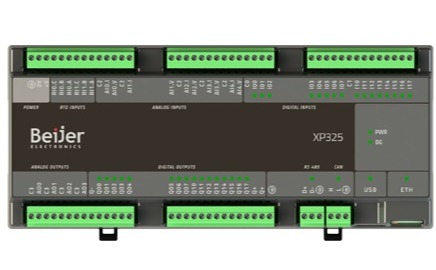

6012-651-2

BCS-XP325

  • 16 DI (4 fast), 16 DO (4 fast), 5 AI, 2 RTD, 4 AO

  • High speed counter input/PTO and PWM outputs

  • Ethernet TCP/IP, Serial, USB and CAN interface

  • CANopen Master interface

  • 3G/4G/WiFi (external accessory via USB port)

  • SQL integration

  • DNV certified

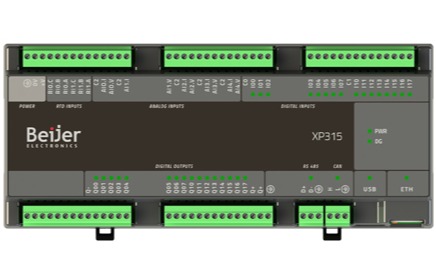

6006-644-1

BCS-XP315

  • 16 DI (4 fast), 16 DO (4 fast), 5 AI, 2 RTD

  • High speed counter input/PTO and PWM outputs

  • Ethernet TCP/IP, Serial, USB and CAN interface

  • CANopen Master interface

  • 3G/4G/WiFi (external accessory via USB port)

  • SQL integration

  • DNV certified

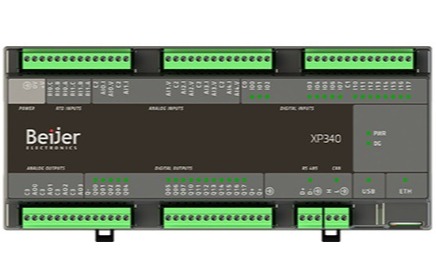

6378-756-2

BCS-XP340

  • 16 DI (4 fast), 16 DO (4 fast), 5 AI, 2 RTD, 4 AO

  • High speed counter input/PTO and PWM outputs

  • Ethernet TCP/IP, Serial, USB and CAN interface

  • CANopen Master interface

  • 3G/4G/WiFi (external accessory via USB port)

  • SQL integration, WebVisualization, IEC 60870-5-104 server

  • DNV certified
