X2 base - Cost-effective, full functionality HMI panels

The X2 base family is now updated with the new range of X2 base v2 HMI panels offering improved performance, more display sizes and an additional range of high-performance HMIs. The X2 base v2 panels are cost-effective industrial HMIs with high-resolution touch-screens and modern design. The HMIs combine IP65 corrosion resistant plastic housing with the full version of the iX software, providing a cost-effective yet advanced HMI solution for small to medium applications.

X2 base V2 vs. X2 base first version

Differences_7

X2 base V2 - Basic Performance

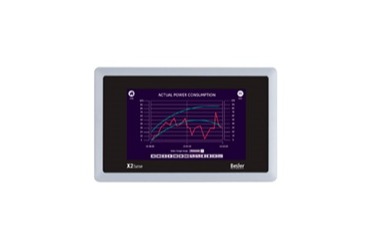

x2 base 5

X2 base 5 v2

5'' HMI with iX runtime

  • 800 × 480 pixel (5:3)

  • TFT-LCD touch screen

  • 500 MB application memory

  • 1 × Ethernet, 4 × serial, 1 × USB as standard

  • Operating temperature -10° to +50° C

  • CE, FCC, KCC, UL (pending) approvals

X2 base 7

X2 base 7 v2

7" HMI with iX runtime

  • 800 × 480 pixel (5:3)

  • TFT-LCD touch screen

  • 500 MB application memory

  • 1 × Ethernet, 4 × serial, 1 × USB as standard

  • Operating temperature -10° to +50° C

  • CE, FCC, KCC, UL (pending) approvals

X2 base 10 v2 hp

X2 base 10 v2

10'' HMI with iX runtime

  • 1024 x 600 pixel (17:10)

  • TFT-LCD touch screen

  • 500 MB application memory

  • 1 × Ethernet, 4 × serial, 1 × USB as standard

  • Operating temperature -10° to +50° C

  • CE, FCC, KCC, UL (pending) approvals

X2 base v2 - High performance - Preliminary data - Launching Soon!

x2 base 5 HP

X2 base 7 v2 HP

7'' HMI with iX runtime

  • 800 × 480 pixel (5:3)

  • TFT-LCD touch screen

  • 1.5 GB application memory

  • 2 × Ethernet, 6 × serial, 2 × USB as standard

  • Operating temperature -10° to +50° C

  • CE, FCC, KCC, UL (pending) approvals

X2 base 10 v2 hp

X2 base 10 v2 HP

10'' HMI with iX runtime

  • 1024 × 600 pixel (17:10)

  • TFT-LCD touch screen

  • 1.5 GB application memory

  • 2 × Ethernet, 6 × serial, 2 × USB as standard

  • Operating temperature -10° to +50° C

  • CE, FCC, KCC, UL (pending) approvals

x2 base 15

X2 base 15 v2 HP

15'' HMI with iX runtime

  • 1366 × 768 pixel (16:9)

  • TFT-LCD touch screen

  • 1.5 GB application memory

  • 2 × Ethernet, 6 × serial, 2 × USB as standard

  • Operating temperature -10° to +50° C

  • CE, FCC, KCC, UL (pending) approvals

First version X2 base HMIs will soon enter life cycle status: Mature

x2 base 5

X2 base 5

5'' HMI with iX runtime

  •  800 × 480 pixel (16:9)

  • TFT-LCD touch screen

  • 200 MB application memory

  • 1 × Ethernet, 4 × serial, 1 × USB as standard

  • Operating temperature -10° to +50° C

  • CE, FCC, KCC, UL approvals

X2 base 7

X2 base 7

7'' HMI with iX runtime

  •  800 × 480 pixel (16:9)

  • TFT-LCD touch screen

  • 200 MB application memory

  • 1 × Ethernet, 4 × serial, 1 × USB as standard

  • Operating temperature -10° to +50° C

  • CE, FCC, KCC, UL approvals

X2 base 10

X2 base 10

10' HMI with iX runtime

  •  800 × 480 pixel (16:9)

  • TFT-LCD touch screen

  • 200 MB application memory

  • 1 × Ethernet, 4 × serial, 1 × USB as standard

  • Operating temperature -10° to +50° C

  • CE, FCC, KCC, UL approvals
