X2 marine - built for life at sea

X2 marine HMI panels offer user-friendly, reliable operation off-shore, on ships and in other maritime applications. With black frame and nautical society certifications, panels are suitable for mounting on the bridge, in the engine room and inside cabins. X2 marine panels are available with optional high brightness display and integrated CODESYS PLC functionality.

Dimmable backlight
Comfortable and safe operation in high and low ambient light conditions. Backlight is continuously dimmable to very low brightness.
High brightness display
Optional 1,000 cd/m² backlight with anti-reflective film provides excellent readability in high ambient light levels such as sunlight.
Built-in digital outputs
X2 marine panels with high brightness option have built-in digital outputs for direct connection of alarms, signal lights, etc.
Internal isolation
Internal isolation conforms to marine standards for both burst and surge immunity.
Robust aluminum housing
Robust aluminum housing with IP65, NEMA 4X/12 and UL Type 4X/12 front. Resistant to direct rain, snow or wash-downs, dirt, grime and dust.
Wide operating temperature
The wide -10°C to +60°C operating temperature range satisfies the demands of most industries.

Standard Panel Mount

X2 7 Marine

X2 marine 7

7'' HMI with iX runtime

  • 800 × 480 pixel (16:9) TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 1x100 Mbit

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

.
X2 marin 15

X2 marine 15

15'' HMI with iX runtime

  • 1280 × 800 pixel (16:10) TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 2x100 Mbit

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

X2 7 Marine

X2 marine 7 SC

7'' HMI with iX runtime/CODESYS

  • 800 × 480 pixel (16:9) TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 2x100 Mbit

  • CODESYS control integrated

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

X2 marin 15

X2 marine 15 SC

15'' HMI with iX runtime/CODESYS

  • 1280 × 800 pixel (16:10) TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 2x100 Mbit

  • CODESYS control integrated

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

High Brightness Panel Mounts

X2 7 Marine

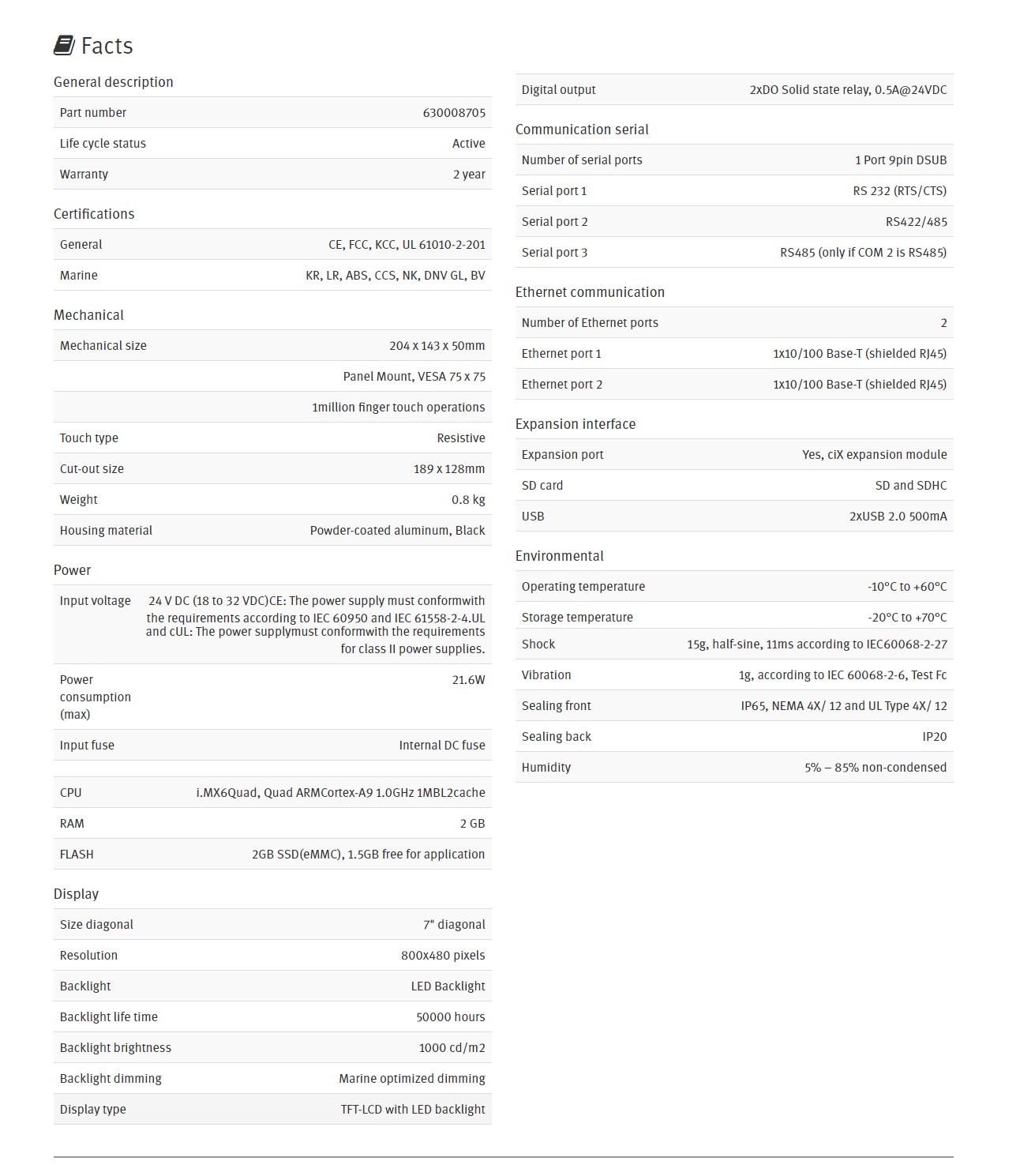

X2 marine 7 HB

7'' HMI with iX runtime

  • 800 × 480 pixel (16:9) TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 2x100 Mbit

  • High brightness display and digital outputs

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

.
X2 marin 15

X2 marine 15 HB

15'' HMI with iX runtime

  • 1280 × 800 pixel (16:10) TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 2x100 Mbit

  • High brightness display and digital outputs

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

X2 7 Marine

X2 marine 7 HB SC

7'' HMI with iX runtime/CODESYS

  • 800 × 480 pixel (16:9) TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 2x100 Mbit

  • CODESYS control integrated

  • High brightness display and digital outputs

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

X2 marin 15

X2 marine 15 HB SC

15'' HMI with iX runtime/CODESYS

  • 1280 × 800 pixel (16:10) TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 2x100 Mbit

  • CODESYS control integrated

  • High brightness display and digital outputs

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS marine approvals

Marine Monitors

The Wave II Monitor series include a range of well-designed, rugged LED monitors with all the required marine approvals. The design is based on extensive feedback from shipowners, shipyards, system integrators and navigators working on the bridge. Suitable for any marine application such as digital route planning, radar, ECDIS, conning etc.
