X2 pro - High performance HMI panels

X2 pro includes a wide range of high performance industrial HMI panels from ultra-compact 4-inch to 21-inch panels designed for demanding applications. All with the high performance of powerful ARM Cortex-A9 processors, the latest screen technology and a wide range of connectivity options to cover all your automation needs.

X2 pro also include a number of web HMI panels perfect for enterprises and users who wants to utilize HTML5 web technologies in industrial environments. The X2 web HMI panels enable visualization of the same content across different target platforms such as mobile, tablet, pc, etc. without any conversion or re-engineering.

pro4

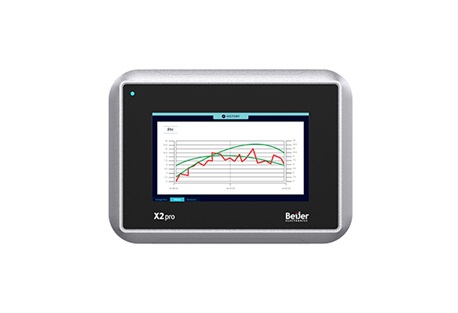

X2 pro 4

4'' HMI with iX runtime

  • 480 × 272 pixel (16:9)

  • TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 1x100 Mbit

  • -10°C to +60°C operating temperature

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

pro7

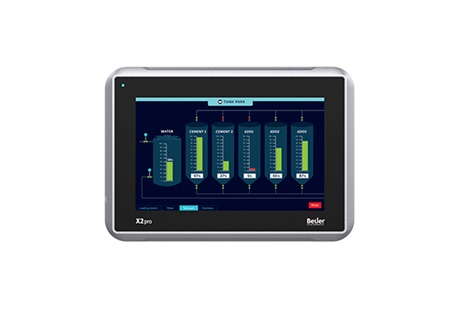

X2 pro 7

7'' HMI with iX runtime

  • 800 x 480 pixel (16:9)

  • TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 1 or 2x100 Mbit

  • -10°C to +60°C operating temperature

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

pro10

X2 pro 10

10'' HMI with iX runtime

  • 1024 x 600 pixel (16:9)

  • TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 2x100 Mbit

  • -10°C to +60°C operating temperature

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

pro12

X2 pro 12

12'' HMI with iX runtime

  • 1280 x 800 pixel (16:10)

  • TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 2x100 Mbit

  • -10°C to +60°C operating temperature

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

pro15

X2 pro 15

15'' HMI with iX runtime

  • 1280 x 800 pixel (16:10)

  • TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 2x100 Mbit

  • -10°C to +60°C operating temperature

  • CE, FCC, KCC, UL approvals

  • DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

pro21

X2 pro 21

21'' HMI with iX runtime

  • Full 1920 x 1080 pixel (16:9)

  • TFT-LCD touch screen

  • 1.5 GB application memory

  • Ethernet 2x100 Mbit

  • 0°C to +50°C operating temperature

  • CE, FCC, UL approvals

  • Marine certifications are not valid for X2 pro 21
